WordHunt Solver

A AI-powered macOS application that automatically solves GamePigeon's Word Hunt puzzles using computer vision and deep learning. Finds all possible words and swipes them for you.

World Record Achievement: This solver achieved the world record highest score of 362,000 points and the highest recorded score (captured on video) of 299,000 points.

Prerequisites

Before installing, ensure you have:

• macOS Sonoma (15.0) or later - Required for iPhone Mirroring feature
• MacBook with iPhone Mirroring app enabled
• iPhone and MacBook logged into the same iCloud account - Required for iPhone Mirroring to work
• Screen Recording and Accessibility permissions - Will be set up during first launch

Features

• AI-Powered Letter Recognition: Custom CNN model trained on thousands of letter images for accurate OCR
• Automatic Game Solving: Detects the board, finds all valid words, and swipes them automatically
• Real-Time Dashboard: Cocoa GUI showing board preview, word progress, and statistics
• Smart Word Finding: Uses Trie data structure for efficient word search across the 4×4 grid
• Calibration System: One-time calibration for perfect board detection accuracy
• Developer Tools: Scripts for dataset creation and model training

Demo

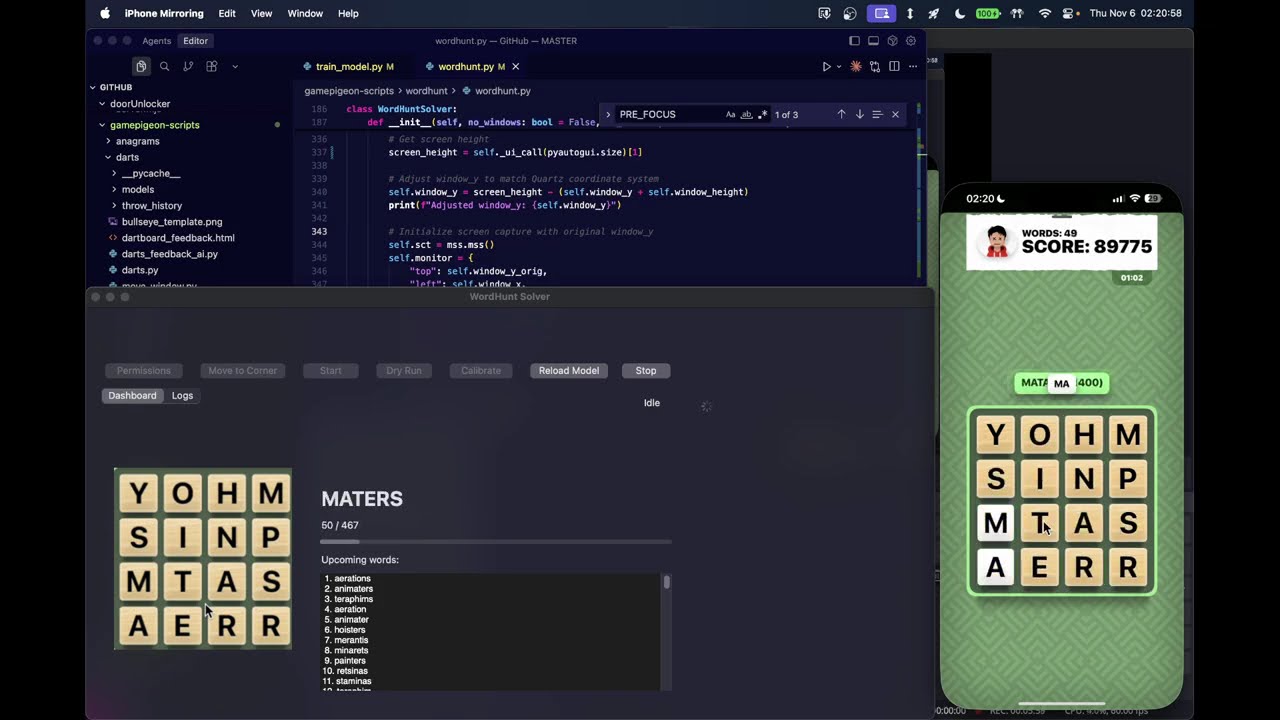

Watch the solver in action, achieving a 299,000 point score (highest recorded score on video):

The solver captures the game board from iPhone Mirroring, recognizes letters using a trained CNN, finds all valid words using a Trie-based search, and automatically swipes them in optimal order. This implementation has achieved the world record highest score of 362,000 points.

How It Works

Architecture Overview

┌─────────────────┐
│ iPhone Mirroring│
│   (Game Board)  │
└────────┬────────┘
         │ Screen Capture (mss)
         ▼
┌─────────────────┐
│  Board Detection│ ← OpenCV (green mask, contour detection)
│   (4×4 Grid)    │
└────────┬────────┘
         │ Extract Cells
         ▼
┌─────────────────┐
│ Letter Recognition│ ← CNN Model (PyTorch)
│   (A-Z, 26 classes)│
└────────┬────────┘
         │ Letters Array
         ▼
┌─────────────────┐
│  Word Finding    │ ← Trie + DFS Search
│  (All valid words)│
└────────┬────────┘
         │ Word List (sorted by length)
         ▼
┌─────────────────┐
│  Auto Swiping    │ ← Quartz CGEvent (mouse simulation)
│  (Input words)   │
└─────────────────┘

Components

1. Board Detection (wordhunt.py)

   • Uses OpenCV to detect the green game board background
   • Applies morphological operations to find board contours
   • Calculates precise 4×4 grid cell positions
   • Supports calibration for improved accuracy

2. Letter Recognition (wordhunt.py + letter_recognition_model.pth)

   • Custom CNN architecture (2 conv layers + 2 FC layers)
   • Trained on 2,400+ labeled letter images
   • Preprocesses cell images (grayscale, resize to 28×28, normalize)
   • Returns letter predictions with confidence scores

3. Word Finding (wordhunt.py)

   • Builds Trie from dictionary (handles 'QU' tiles correctly)
   • Depth-first search across all 8 directions
   • Validates words against dictionary
   • Sorts by length (longest first) for maximum points

4. Automation (wordhunt.py)

   • Uses Quartz CGEvent API for precise mouse control
   • Calculates swipe paths through grid cells
   • Handles coordinate system conversions (window ↔ screen ↔ Quartz)
   • Respects game timing constraints (1:15 round limit)

5. GUI (app_cocoa.py)

   • Native macOS Cocoa application
   • Real-time board preview
   • Word progress tracking
   • Logs and diagnostics

Model Details

Architecture

The letter recognition model is a Convolutional Neural Network with the following structure:

Input: 28×28 grayscale image
  ↓
Conv2d(1 → 32, kernel=3) + ReLU
  ↓
MaxPool2d(2×2)
  ↓
Conv2d(32 → 64, kernel=3) + ReLU
  ↓
MaxPool2d(2×2)
  ↓
Flatten → Linear(64×5×5 → 128) + ReLU
  ↓
Dropout(0.5)
  ↓
Linear(128 → 26) + LogSoftmax
  ↓
Output: 26 classes (A-Z)

Training Process

1. Dataset Creation (create_dataset.py)

   • Captures game boards from iPhone Mirroring
   • Extracts individual cell images
   • Manual labeling interface with AI suggestions
   • Deduplication by image hash
   • Organizes images into letter_dataset/A/, letter_dataset/B/, etc.

2. Model Training (train_model.py)

   • 80/20 train/validation split
   • Adam optimizer with CrossEntropyLoss
   • Saves best model based on validation accuracy
   • Provides per-letter diagnostics for problematic classes
   • Typical training: 50-100 epochs

3. Model Performance

   • Trained on 2,400+ labeled images
   • High accuracy on letter recognition
   • Handles various lighting conditions and board states
   • Model file: letter_recognition_model.pth (896 KB)

Dataset Statistics

• Total Images: 2,407 labeled letter samples
• Distribution: Varies by letter frequency (E, A, R most common; Q, Z least common)
• Format: 28×28 grayscale PNG images
• Organization: One folder per letter (A-Z)

Installation

Option 1: Download Pre-built Release (Recommended)

1. Download the latest release

   • Go to the Releases page
   • Download WordHuntSolver-macOS.zip from the latest release

2. Extract and open the app

   • Extract the ZIP file
   • Double-click WordHuntSolver.app to open it
   • macOS will show a security warning: "WordHuntSolver cannot be opened because the developer cannot be verified"
   • Click Cancel

3. Trust and open the app

   • Open System Settings → Privacy & Security
   • Scroll down to find the message: "WordHuntSolver was blocked from use because it is not from an identified developer"
   • Click Open Anyway next to the message
   • Confirm by clicking Open in the dialog

4. Set up permissions

   • When the app opens, click the "Permissions" button in the app
   • This will open System Settings to the relevant privacy sections
   • Enable Screen Recording permission
   • Enable Accessibility permission
   • You may need to restart the app after granting permissions

5. You're ready to go!

   • Open iPhone Mirroring with Word Hunt game
   • Click "Move to Corner" to position the window
   • Send the Word Hunt text, and open it to the Start screen
   • Click "Start" on the app to begin solving

Option 2: Install from Source

1. Clone the repository

   git clone https://github.com/Ammaar-Alam/wordhunt-solver.git
   cd wordhunt-solver

2. Install dependencies

   pip install -r requirements.txt

3. Run the application

   python app_cocoa.py

4. Set up permissions

   • Click the "Permissions" button in the app
   • Enable Screen Recording and Accessibility permissions
   • Restart the app if needed

Usage

GUI Mode (Recommended)

1. Launch the app

   • If installed from release: Open WordHuntSolver.app
   • If installed from source: Run python app_cocoa.py

2. Initial setup

   • Click "Permissions" button to open System Settings
   • Grant Screen Recording permission
   • Grant Accessibility permission
   • Restart the app if permissions were just granted

3. Prepare iPhone Mirroring

   • Open iPhone Mirroring on your MacBook
   • Open Word Hunt game on your iPhone
   • Click "Move to Corner" in the app to position the iPhone Mirroring window

4. Calibration (Optional, recommended for first use)

   • Click "Calibrate"
   • Hover over center of top-left tile, wait for countdown
   • Hover over center of bottom-right tile, wait for countdown
   • Calibration is saved for future runs

5. Solve

   • Send the Word Hunt text, and open it to the Start screen
   • Click "Start" to begin solving
   • Important: Once solving starts, the app takes control of your mouse. You will not be able to move your mouse manually while the solver is running.
   • Watch the dashboard for progress
   • Words are swiped automatically in optimal order
   • To stop immediately: Press Escape (Esc) key at any time during solving to stop the solver and regain mouse control

Command Line Mode

# Interactive menu
python wordhunt.py menu

# Auto-solve (non-interactive)
python wordhunt.py solve

# Dry run (find words but don't swipe)
python wordhunt.py dry-run

# Calibration only
python wordhunt.py calibrate

Important Usage Notes

• Mouse Control: When solving starts, the app takes full control of your mouse. You cannot move your mouse manually while the solver is active.
• Stopping the Solver: Press Escape (Esc) key at any time to immediately stop solving and regain mouse control. You can also click the "Stop" button in the app.
• Keyboard Shortcuts:
  • ⌘S - Start solving
  • ⌘. - Stop solving
  • Esc - Stop solving (works globally, even when app is not focused)

Testing Without iPhone Mirroring

Use simulate_board.py to test word finding on a typed board:

python simulate_board.py --grid "dtio fors npat lfin" --limit 50

Development

Creating a Dataset

The dataset creation tool (create_dataset.py) allows you to collect labeled letter images from game boards:

1. Start dataset creation

   python create_dataset.py --suggest

2. Process boards

   • Ensure iPhone Mirroring is open with Word Hunt game visible
   • The tool captures the current board and extracts individual cell images
   • For each cell, it displays the image and prompts for the letter label
   • Use --suggest flag to get AI predictions as starting point (press Enter to accept, or type the correct letter)
   • Type 'q' to quit the current board

3. Label cells

   • Each cell image is shown in a window
   • Enter the correct letter (A-Z) for each cell
   • Images are automatically saved to letter_dataset/<LETTER>/ folders
   • Duplicate images are detected and skipped using content hashing

4. Continue with more boards

   • After labeling all 16 cells, you'll be prompted to process another board
   • Type 'y' to continue or 'n' to finish
   • More boards provide better training data diversity

5. Dataset organization

   • Images are saved as letter_dataset/A/A_000001.png, letter_dataset/B/B_000001.png, etc.
   • Each letter folder contains all labeled images for that letter
   • The tool maintains an index to avoid duplicate filenames

Training Your Own Model

1. Train model

   python train_model.py

   • Automatically splits data into train/validation (80/20)
   • Saves best model to letter_recognition_model.pth based on validation accuracy
   • Shows per-letter accuracy diagnostics to identify problematic classes
   • Typical training: 50-100 epochs

2. Test model

   • Run solver with new model
   • Check accuracy on real boards
   • Add more training data for problematic letters if needed

Project Structure

WordHunt-Solver/
├── app_cocoa.py              # Cocoa GUI application
├── wordhunt.py               # Core solver logic
├── train_model.py            # CNN training script
├── create_dataset.py         # Dataset creation tool
├── simulate_board.py         # Testing utility
├── letter_recognition_model.pth  # Trained CNN model
├── dictionary.txt            # Word dictionary
├── requirements.txt          # Python dependencies
├── setup.py                  # py2app configuration
├── Makefile                  # Build commands
└── WordHuntSolver.spec       # PyInstaller spec

Key Files Explained

• wordhunt.py: Main solver class with board detection, OCR, word finding, and automation
• app_cocoa.py: Native macOS GUI with real-time updates
• train_model.py: Model training with validation and diagnostics
• create_dataset.py: Interactive tool for labeling training data
• letter_recognition_model.pth: Pre-trained PyTorch model weights
• dictionary.txt: 477,000+ word dictionary for validation

Technical Details

Coordinate Systems

The solver handles three coordinate systems:

1. Window Coordinates: Top-left origin, relative to iPhone Mirroring window
2. Screen Coordinates: Top-left origin, absolute screen position (pyautogui)
3. Quartz Coordinates: Bottom-left origin, macOS native (CGEvent)

The solver converts between these systems for accurate mouse control.

Board Detection Algorithm

1. Crop image to likely board region (45%-85% of height)
2. Convert to HSV color space
3. Create green mask (H: 35-85, S: 40-255, V: 40-255)
4. Apply morphological operations (close + open)
5. Find largest contour (the board)
6. Calculate grid cell positions from bounding box
7. Optionally refine using tan tile detection

Word Finding Algorithm

1. Build Trie from dictionary (compresses 'qu' → 'q' for QU tiles)
2. For each starting cell:
   • Perform DFS in all 8 directions
   • Track visited cells to avoid reuse
   • Check Trie for valid word completions
3. Sort results by length (descending), then alphabetically
4. Calculate potential score using Word Hunt scoring rules

Scoring System

• 3 letters: 100 points
• 4 letters: 400 points
• 5 letters: 800 points
• 6 letters: 1,400 points
• 7 letters: 1,800 points
• 8 letters: 2,200 points
• 9+ letters: 2,600 + (length - 9) × 400 points

Troubleshooting

Board Not Detected

• Ensure iPhone Mirroring window is visible
• Check that game board is fully visible (not covered)
• Try calibration for better accuracy
• Adjust WORDHUNT_MARGIN_*_RATIO environment variables

Letters Misrecognized

• Run calibration to improve board detection
• Check lighting conditions
• Train model with more data for problematic letters
• Use --suggest flag in dataset creation to improve labeling

Swipes Not Working

• Verify Accessibility permission is granted
• Check that iPhone Mirroring window is focused
• Ensure game is in active play state
• Try "Move to Corner" button to reposition window

Model Not Found

• Ensure letter_recognition_model.pth is in the same directory
• Check file permissions
• Re-download from repository if missing

Contributing

Contributions are welcome! Areas for improvement:

• Adding to the letter dataset: While the current model achieves high accuracy, additional labeled letter images can help improve edge cases and robustness. See the "Creating a Dataset" section above for instructions on how to add new training data.
• Support for different screen sizes/resolutions
• Performance optimizations
• Additional game modes
• Cross-platform support (Windows/Linux)

Development Setup

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Test thoroughly
5. Submit a pull request

License

This project is licensed under the MIT License - see the LICENSE file for details.

---

Disclaimer: This tool is for educational purposes. Use responsibly and in accordance with GamePigeon's terms of service.

Note: This README was generated (entirely) with assistance from AI tools. While the technical information is accurate, please verify details against the source code and documentation.
