Tutorial #5

The goal of this tutorial

Understanding how to dynamically switch between child RIBs

Starting out

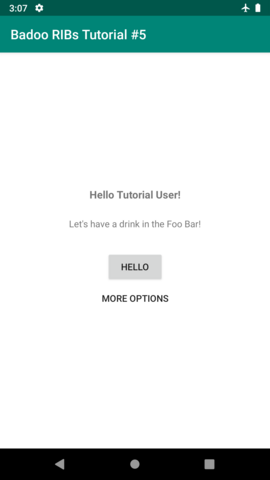

Launch the tutorial5 app, and you can see that there's a new button in the layout: MORE OPTIONS.

If you look at the project structure, you can also find a new RIB in this module: OptionSelector.

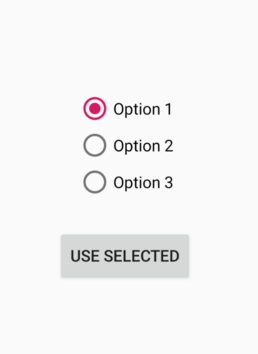

All it does is it renders a screen with text options and a confirm button. We will use that to update the button text in our HelloWorld rib, and also use it for the actual greeting shown in the Snackbar.

Hiererachy of multi-child RIBs

We had this hiearachy so far:

GreetingsContainer
└── HelloWorld

And now we'll add OptionsSelector as the second child of GreetingsContainer:

GreetingsContainer
├── HelloWorld
└── OptionsSelector

The idea how they will work together:

1. On HelloWorld screen, User presses MORE OPTIONS. Since it is beyond the responsibility of HelloWorld RIB, it reports it as Output
2. GreetingsContainer catches the output, and switches its routing from HelloWorld to OptionsSelector. Since we display the container on the whole screen, this results in a "new screen" effect.
3. OptionsSelector offers UI interaction to select something from a radio group. What should happen when a certain options is selected is beyond its responsibilities, so similarly as with HelloWorld, it reports it as Output.
4. GreetingsContainer catches the output, switches back its routing to HelloWorld again.
5. The text of the main button in HelloWorld should be updated to reflect the newly selected option. This can be done by via an Input command to HelloWorld which allows setting of the text from outside of the RIB.

Test your knowledge

By now you should be able to:

1. Trigger a new event from the UI that reaches the parent as Output
   1. Add a new element to Output in HelloWorld called ShowMoreOptions
   2. Add a new element to Event in HelloWorldView called MoreOptionsButtonClicked
   3. In HelloWorldView, set a click listener on moreOptionsButton that will publish MoreOptionsButtonClicked
   4. Add the transformation between Event and Output in the viewEventToOutput transformer
   5. React to this new output in GreetingsContainerInteractor. Leave the actual implementation a TODO()
2. Add OptionSelector RIB as a child of GreetingsContainer. This involves:
   1. making GreetingsContainerComponent extend child dependency interface
   2. satisfying child dependencies (prepared for you in GreetingsContainerModule)
   3. providing optionsSelectorBuilder to the GreetingsContainerRouter
   4. adding a new Configuration to GreetingsContainerRouter: "OptionsSelector"
   5. resolving it to an attach { optionsSelectorBuilder.build() } action

For help with the above tasks, you can refer to:

• tutorial1 / Further reading section on how to make a Button trigger an Output
• tutorial2 / Summary section on how to add a child RIB to a parent
• tutorial4 on commnunication with child RIBs, i.e. Inputs / Outputs

Implement routing

Right now:

1. our new Button can signal the correct Output
2. the container's Router can build the other RIB we need

The only thing we need is to connect the dots, so that 1. actually triggers doing 2.

Business logic triggers routing:

1. in GreetingsContainerInteractor we consume the Output of HelloWorld
2. in the when branch for the new Output (where we added a TODO()) we want to tell GreetingsContainerRouter to switch to the Configuration representing OptionSelector RIB.

All we need to do is:

class GreetingsContainerInteractor
    // ...

    internal val helloWorldOutputConsumer: Consumer<HelloWorld.Output> = Consumer {
        when (it) {
            HelloThere -> output.accept(GreetingsSaid("Someone said hello"))
            ShowMoreOptions -> router.push(Configuration.OptionsSelector)
        }
    }
}

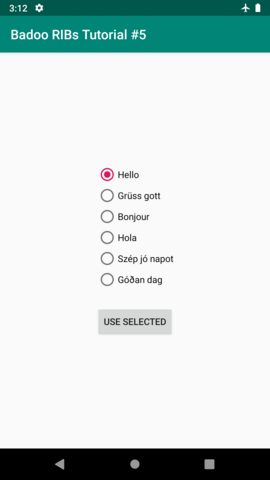

Pressing the MORE OPTIONS button the app should display the new screen:

Try it!

Right now the only way of getting back to HelloWorld is to press back on the device. We'll address that soon.

Explanation: the back stack

Why did the above work?

All Routers have a routing back stack. By default, this back stack has a single element:

back stack = [(initial configuration)]

This is the one you set in your Router. In GreetingsContainerRouter this reads:

class GreetingsContainerRouter(
    // ...
    initialConfiguration = Configuration.HelloWorld
)

So our default back stack was in fact:

back stack = [*Configuration.HelloWorld]

A configuration can be either active/inactive. In simple terms, it's active if it's on screen.

A simplified rule of the back stack is that only the last configuration is active. We'll mark this with an asterisk (*) from now on.

Router offers you operations to manipulate this back stack.

fun push(configuration: Content)

fun popBackStack(): Boolean

There are other operations too, but we'll discuss them later in other tutorials. What's important is that push adds a new element to the end of the back stack, while popBackStack removes the last one from the end.

So when we did router.push(Configuration.OptionsSelector), this happened:

back stack 0 = [*Configuration.HelloWorld]
// push
back stack 1 = [Configuration.HelloWorld, *Configuration.OptionsSelector]

And because we just said that the last element in the back stack is active (on screen), this means that the view of HelloWorld gets detached, and OptionsSelector gets created and attached.

Back pressing and the back stack

The reverse is happening when we pressed back.

By default, back pressing is propagated to the deepest active levels of the RIB tree by default, where each RIB has a chance to react to it:

1. Interactor has a chance to override handleBackPress() to do something based on business logic
2. Router will be asked if it has back stack to pop. If yes, pop is triggered and nothing else is done.
3. If Router had only one more configuration left in its back stack, there's nothing more to remove. The whole thing starts bubbling up the RIB tree to higher levels until one of the levels can handle it (points 1 and 2). If it is handled, the propagation stops.
4. If the whole RIB tree didn't handle the back press, then the last fallback is the Android environment (in practice this probably means that the hosting Activity finishes).

In our case, when we were on the OptionsSelector screen, GreetingsContainerRouter had 2 elements in its back stack, so it could automatically handle the back press event by popping the latest:

back stack 0 = [*Configuration.HelloWorld]
// push
back stack 1 = [Configuration.HelloWorld, *Configuration.OptionsSelector]
// back press
back stack 2 = [*Configuration.HelloWorld]

And again, because last element in the back stack is on screen, this means that OptionsSelector gets detached, and HelloWorld gets attached back to the screen again.

Almost there: use the result from options screen

Of course there's no point of opening the second screen if we cannot interact with it and our only option is to press back.

So let's make it a bit more useful:

1. Add a new element to Output in OptionsSelector: data class OptionSelected(val text: Text) : Output()
2. Add a new element to Event in OptionsSelectorView: data class ConfirmButtonClicked(val selectionIndex: Int) : Event()
3. In OptionsSelectorViewImpl, add a click listener on confirmButton that will trigger this event.
4. Go to OptionSelectorInteractor. Add the transformation between Event and Output in the viewEventToOutput transformer.
5. Go to GreetingsContainerInteractor, and add a branch to the when expression in moreOptionsOutputConsumer

What we want to do is:

• Take the Text that's coming in the Output
• Feed it to HelloWorld using an Input of UpdateButtonText
• Actually go back one screen = manually popping the back stack

This is how it might look:

internal val optionsSelectorOutputConsumer: Consumer<OptionSelector.Output> = Consumer {
    when (it) {
        is Output.OptionSelected -> {
            router.popBackStack()
            helloWorldInputSource.accept(
                UpdateButtonText(it.text)
            )
        }
    }
}

Test run!

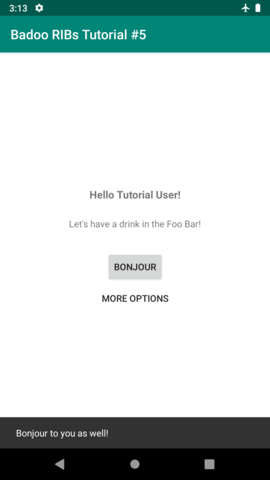

At this point we should be able to go to options selection screen, chose an item from the radio group, and pressing the confirm button we should land back at the Hello world! screen with the label of the hello button reflecting our choice.

Press the button!

Reflecting on what we just did: composing

We just created more complex functionality by a composition of individually simple pieces!

When we created our hierarchy like this, we kept the two children decoupled from each other:

GreetingsContainer
├── HelloWorld
└── OptionsSelector

Even though they work together as a system, HelloWorld and OptionsSelector has no dependency on each other at all.

This is actually beneficial, because:

• OptionsSelector is a generic screen (it renders whatever text options we build it with)
• From the perspective of HelloWorld it really shouldn't care where it gets its other greetings

Keeping them decoupled means:

• OptionsSelector can be reused freely elsewhere to render the same screen with other options
• HelloWorld can be reused with different implementation details how to provide more options to it

The combined functionality we just implemented emerges out of the composition of these pieces inside GreetingsContainer. Each level handles only its immediate concerns:

• HelloWorld implements hello functionality and can ask for more options
• OptionsSelector renders options and signals selection
• GreetingsContainer connects the dots and contains only coordination logic. All other things are delegated to child screens as implementation details.

Tutorial complete

Congratulations! You can advance to the next one.

Summary

Dynamic routing

1. Make the parent RIB be able to build a child RIB (as seen in tutorial2):
   1. Add configuration & routing action in Router
   2. Provide child Builder via DI
2. React to some event (usually to child Output as seen in tutorial4, but can be anything else) in Interactor of parent RIB by pushing new configuration to its Router
3. Use back press or popBackStack() programmatically to go back

Composing functionality

1. Instead of one messy RIB, map complex functionality to a composition of simple, single responsibility RIBs
2. When composing, keep parent levels simple. They should only coordinate between child RIBs by Inputs/Outputs, and delegate actual functionality to children as implementation details.
3. Sibling RIBs on the same level should not depend on each other, so that they can be easily reused elsewhere.
