Tutorial #1

Before you start

  1. Clone the repo:

    git clone https://github.com/badoo/RIBs

  2. Open the project in Android Studio

The goal of this tutorial

Building and attaching an existing RIB to an integration point. Hello world!

How an app using RIBs is structured

  1. There's one or more integration points in the form of Activities / Fragments / etc. Ideally the app should be single-Activity, but the library makes no difference about it.
  2. Integration points build a Node (can be any Node), and attach it to themselves, propagating all lifecycle methods to it. This Node will be the root.
  3. A tree structure of Nodes represent the application's business logic state.
  4. A tree structure of Views represent the application on the view level. This tree is not necessarily the same as the Node tree, as Nodes do not necessarily have their own views, or might be attached to a different place in the view tree (dialogs). We'll see examples about these later.

How a RIB is structured

Open up the tutorial1 module, which has a single RIB in the com.badoo.ribs.tutorials.tutorial1.rib.hello_world package.

It contains a bunch of classes and packages, where to start?

The immediate go-to when checking out any RIB you are not familiar with, is the main interface of the RIB, which serves as the documentation of its public API.

In Badoo RIBs, this main interface always has the name of the RIB itself without any suffix, and you can find it in the root of the package.

An example of such a public interface typically looks like:

interface ExampleRib : Rib {

    interface Dependency : Rib.Dependency {
        fun exampleRibInput(): ObservableSource<Input>
        fun exampleRibOutput(): Consumer<Output>
        // + other dependencies
    }

    sealed class Input {
        // possible Inputs
    }

    sealed class Output {
        // possible Outputs
    }

    class Customisation(
        val viewFactory: ViewFactory<HelloWorldView> = inflateOnDemand(
            R.layout.rib_hello_world
        )
    )
}

Dependencies

Here, the Dependency interface describes all external dependencies this RIB needs to be built.

RIBs act as a black box that can be plugged in anywhere. This means, that as long as you can provide their dependencies, you can build them, and they are supposed to be auto-wired and ready to go immediately without any further actions.

Inputs and Outputs

RIBs can also have Inputs / Outputs. These represent the way we can communicate with them, and they are always defined as part of the public API.

We'll see this in practical examples, but for now, the only things that matter, is that:

  • if a RIB has Input, then it also has a dependency of ObservableSource<Input>
  • if a RIB has Output, then it also has a dependency of Consumer<Output>

This is important to satisfy the plug-and-play functionality of the RIB. Every RIB implementation guarantees that as long as you can give it a source of its Inputs that it can observe, and a consumer of its possible Outputs that will handle them, it will do all the required wiring internally, and will "just work" out of the box.

Getting our hands dirty

Enough theory, let's get down to the practical details, and check out HelloWorld interface:

package com.badoo.ribs.tutorials.tutorial1.rib.hello_world

interface HelloWorld : Rib {

    interface Dependency {
        fun helloWorldOutput(): Consumer<Output>
    }

    sealed class Output {
        object HelloThere : Output()
    }

    class Customisation(
        val viewFactory: ViewFactory<HelloWorldView> = inflateOnDemand(
            R.layout.rib_hello_world
        )
    )
}

The new thing here is the Customisation part, but we'll talk about that in other tutorials. For now, it's enough to understand that this RIB will have a default view inflated from R.layout.rib_hello_world.

This RIB does not have any Inputs, and it has only one possible Output: HelloThere. Following from what we said above, this also means that it has a dependency of someone to consume this Output.

It has no other dependencies, so as long as we can give it a Consumer, we can build it!

Let's take it for a test run!

Open up RootActivity in the tutorial1 module:

/** The tutorial app's single activity */
class RootActivity : RibActivity() {

    /* remainder omitted */

    override fun createRib(savedInstanceState: Bundle?): Node<*> =
        TODO("Create HelloWorldBuilder, supply dependencies in constructor, return built Node")
}

This Activity extends the RibActivity class from the library, which is just a convenience class to forward all lifecycle methods to a single root RIB. It has an abstract method createRib(): Node<*> which we need to implement here.

To do this, we first need to create an instance of HelloWorldBuilder. Opening this class we can see that it indeed needs an instance of the Dependency interface defined in the public API of the RIB:

class HelloWorldBuilder(dependency: HelloWorld.Dependency) {

    /* remainder omitted */

    fun build(buildContext: BuildContext.Params): Node<HelloWorldView> {
        /* remainder omitted */
    }
}

And also that it has a build method which will give us the Node object we need to return from the createRib() method.

So let's do that!

/** The tutorial app's single activity */
class RootActivity : RibActivity() {

    /* remainder omitted */

    override fun createRib(savedInstanceState: Bundle?): Node<*> =
        HelloWorldBuilder(
            object : HelloWorld.Dependency {
                override fun helloWorldOutput(): Consumer<HelloWorld.Output> = Consumer {
                    // not sure what to do here yet
                }
            }
        ).build(BuildContext.root(savedInstanceState))
}

Now the project should compile. Build it, and we should see this screen:

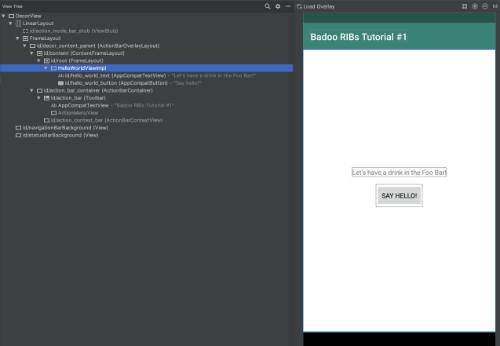

And checking the view hierarchy, this is what we should see:

View hierarchy of HelloWorld RIB

So indeed, that button we see is coming from the RIB we built! Yay!

Now this doesn't do to much. So let's change the Consumer dependency that we pass to the Builder so that it displays a Snackbar:

override fun createRib(savedInstanceState: Bundle?): Node<*> =
        HelloWorldBuilder(
            object : HelloWorld.Dependency {
                override fun helloWorldOutput(): Consumer<HelloWorld.Output> = Consumer {
                    Snackbar.make(rootViewGroup, "Hello world!", Snackbar.LENGTH_SHORT).show()
                }
            }
        ).build(
            // You only ever need to supply this info manually at your root RIB
            // All other children get it from the framework
            BuildContext.Params(
                ancestryInfo = AncestryInfo.Root,
                savedInstanceState = savedInstanceState
            )
        )

Build and deploy the app, and pressing the button this is what we should see:

As promised, beyond providing the required dependencies, we did not need to make any additional wiring - the HelloWorld RIB takes care of the setup that makes the button click invoke the lambda that we passed in.

🎉 🎉 🎉 Congratulations 🎉 🎉 🎉

You just built your first RIB!

You can advance to the next tutorial, or continue reading for some additional understanding of the internals.

Further reading - internals of the HelloWorld RIB

If we want to understand why pressing the button on the UI actually invokes showing the Snackbar, we'll have to check some other classes in the hello_world package, too.

The View

Let's start from the view side, and open up HelloWorldView. We see an interface and an implementation of it. Let's start with the interface:

interface HelloWorldView : RibView,
    ObservableSource<Event>,
    Consumer<ViewModel> {

    sealed class Event {
        object ButtonClicked : Event()
    }

    /* remainder omitted */
}

Views (as well as other components in RIBs) are reactive.

This HelloWorldView interface states that any implementation of the view is a source of Events (here a single one for ButtonClicked) and a consumer of ViewModels (which we are not using now).

The View implementation

You can check in the Android view implementation right below the interface how this is done:

class HelloWorldViewImpl(
    /* remainder omitted */
) {
    /* remainder omitted */

    private val button: Button by lazy { findViewById<Button>(R.id.hello_world_button) }

    override fun onFinishInflate() {
        super.onFinishInflate()
        button.setOnClickListener { events.accept(Event.ButtonClicked) }
    }

    /* remainder omitted */
}

Any click on the button with the id R.id.hello_world_button will result in the associated ButtonClicked event being published.

The View itself never cares for how a certain UI interaction affects anything related to business logic. It only renders ViewModels, and triggers Events based on the user interaction.

So where is this event being used?

Connecting the dots

Open up HelloWorldInteractor, which is responsible for connecting different parts of business logic:

class HelloWorldInteractor(
    /* remainder omitted */
    private val output: Consumer<HelloWorld.Output>
    /* remainder omitted */
) {

    override fun onViewCreated(view: HelloWorldView, viewLifecycle: Lifecycle) {
        viewLifecycle.startStop {
            bind(view to output using ViewEventToOutput)
        }
    }
}

The only important parts are that:

  1. This class receives output in its constructor. This is the object that we required when we declared the RIB's dependencies - the consumer which knows how to react to our Output event -, and is passed here via dependency injection. If you are familiar with Dagger, you can check HelloWorldComponent and HelloWorldModule classes in the builder package to see how.

  2. The maybe strange looking syntax in onViewCreated is a lifecycle-scoped binding between two reactive endpoints. Here, these two endpoints are the view (reactive source of HelloWorldView.Event) and the output (reactive consumer of HelloWorld.Output), and the scope of the binding is a START-STOP cycle. As the two endpoints have different types, the binding uses a simple mapper ViewEventToOutput found in the mapper package. In this implementation it provides a simple 1:1 mapping between the two types:

object ViewEventToOutput : (HelloWorldView.Event) -> HelloWorld.Output {
    override fun invoke(event: HelloWorldView.Event): HelloWorld.Output =
        when (event) {
            HelloWorldView.Event.ButtonClicked -> Output.HelloThere
        }
}

Sidenote

Badoo RIBs uses MVICore both under the hood and in RIB implementations for state machines as well as providing the tools to connect reactive components.

Both the viewLifecycle.startStop and the bind(view to output using ViewEventToOutput) parts come from the library. You can check out its documentation for more information about these topics.

To sum it up

  1. The default view is inflated from R.layout.rib_hello_world (defined in main interface), which gives us an instance of HelloWorldViewImpl
  2. HelloWorldViewImpl finds a button in the view hierarchy by id
  3. An onClickListener is set on it that will trigger publishing an Event defined in HelloWorldView interface
  4. Interactor will:
    1. take HelloWorldView as a reactive output
    2. transforms elements coming from it using a mapper
    3. connect this transformed stream of Output events to the output consumer (which we got from our dependencies)

The result is a clear separation of concerns. View implementation doesn't care what the event will trigger, and even the whole RIB doesn't care what should happen once a certain Output is triggered. You can integrate this same RIB in different places, and provide a Consumer dependency that shows a Snackbar in one place, and one that shows a Toast in another.
